Lenses for Long-Wave Infrared (LWIR) Cameras for 8-14 µm

LWIR Zoom Lens Assemblies

Go to Product Support

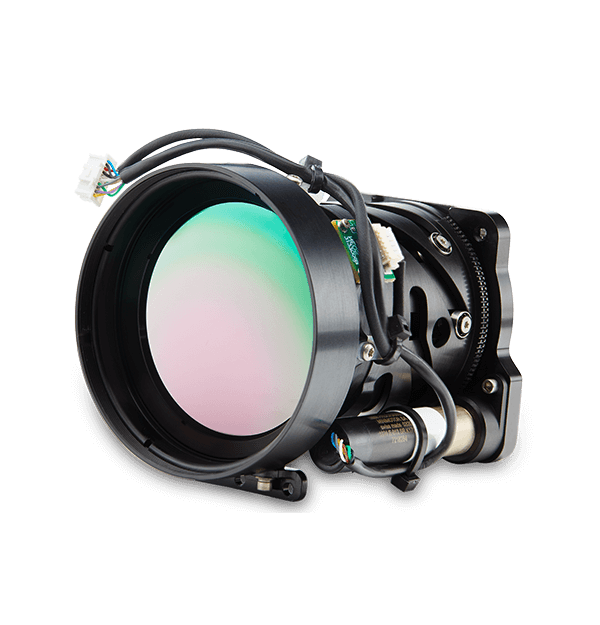

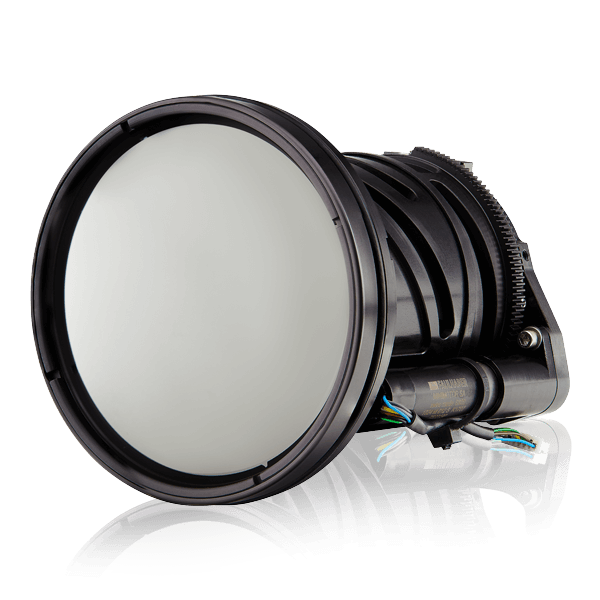

product image

Teledyne FLIR custom and off-the-shelf long-wave infrared (LWIR) continuous zoom (CZ) optical assemblies and lenses are for integrators and operators who do not compromise on quality. All lens assemblies have near diffraction limited performance and include advanced features that ensure continuous focus through the zoom.

Formerly New England Optical Systems (NEOS) and now part of Teledyne FLIR, the world-class technical services team provides product support and can also develop new or customize existing lens assemblies for a camera, application, and mission. Designed to maximize infrared-camera performance, the LWIR CZ lens assemblies provide the competitive advantages required in the field and marketspace for a wide range of defense, security, and commercial applications.

  • Uncompromised Performance and Reliability

    Designs have near diffraction limited performance through zoom enabling users to Detect, Recognize, and Identify (DRI) threats in real time.

  • Smart Optics Ensure Continuous Focus

    Control electronics and additional features go beyond simple focus and zoom to provide focus when and where you need it.

  • Custom Designs and Support for the Mission

    Teledyne FLIR technical services team can develop new or customize existing zoom lens assemblies for a camera, application, and mission.

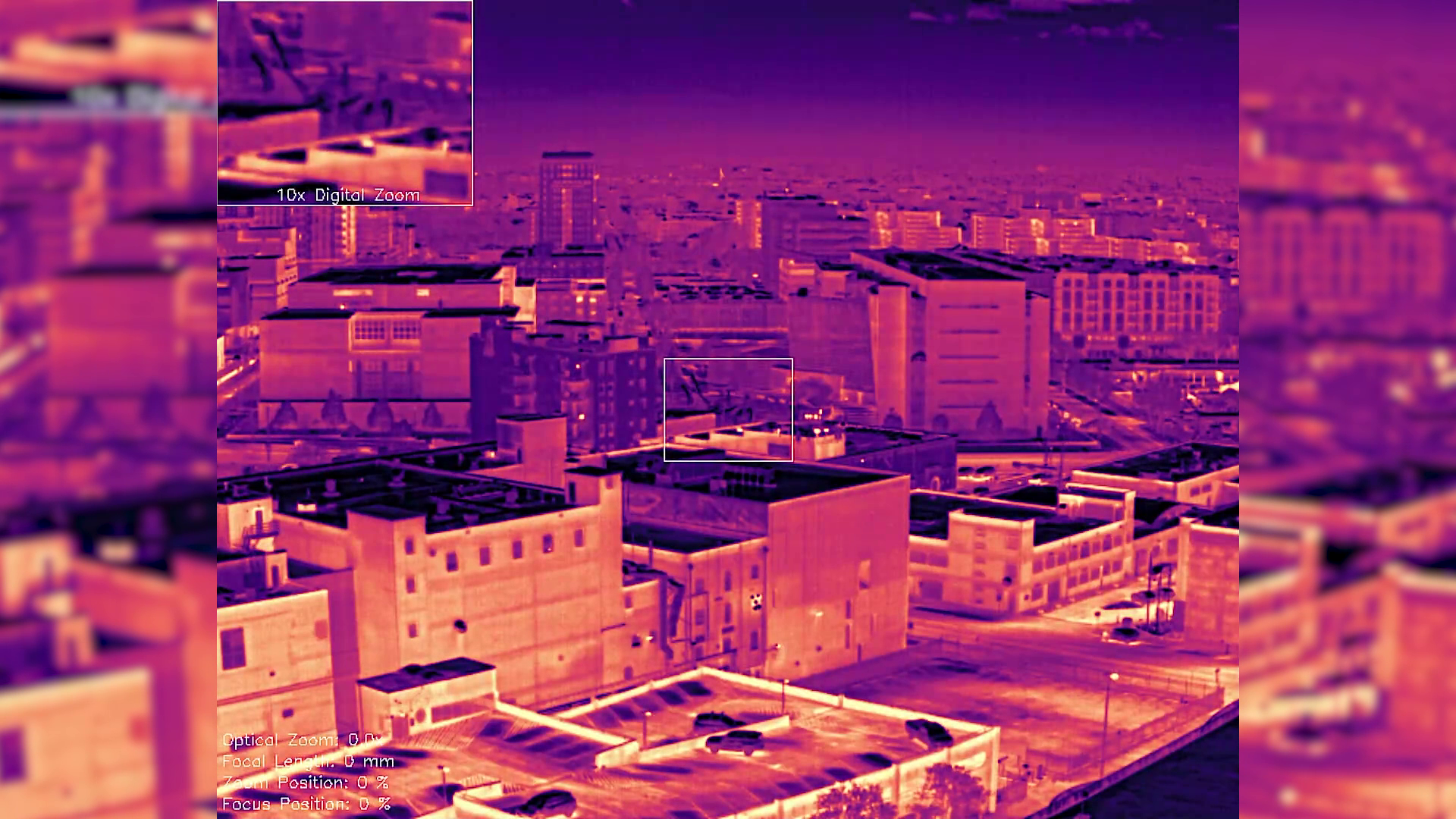

Rooftop Surveillance - Boson+ CZ


Traffic Surveillance - Boson+ CZ

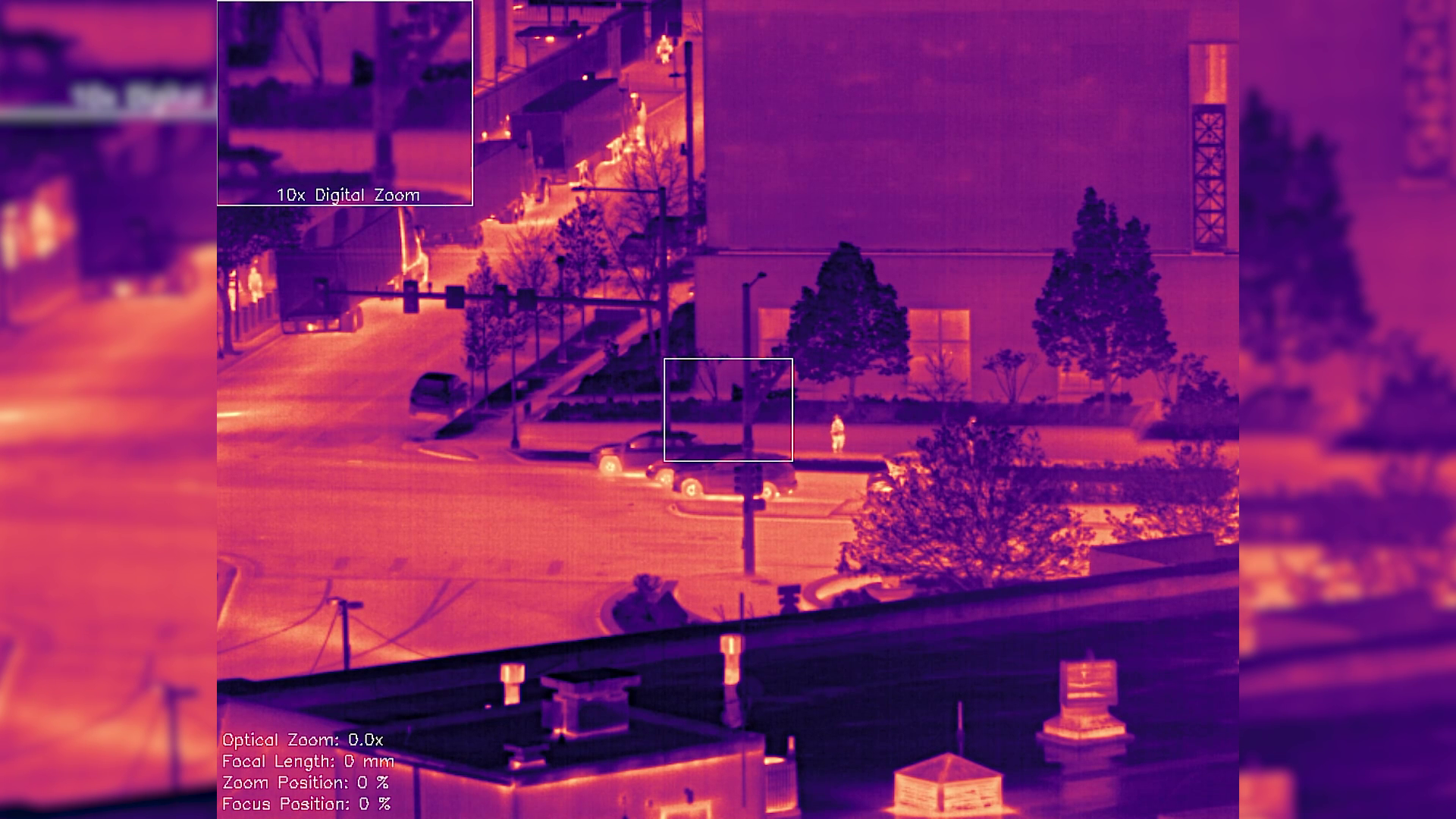

Street Surveillance - Boson+ CZ


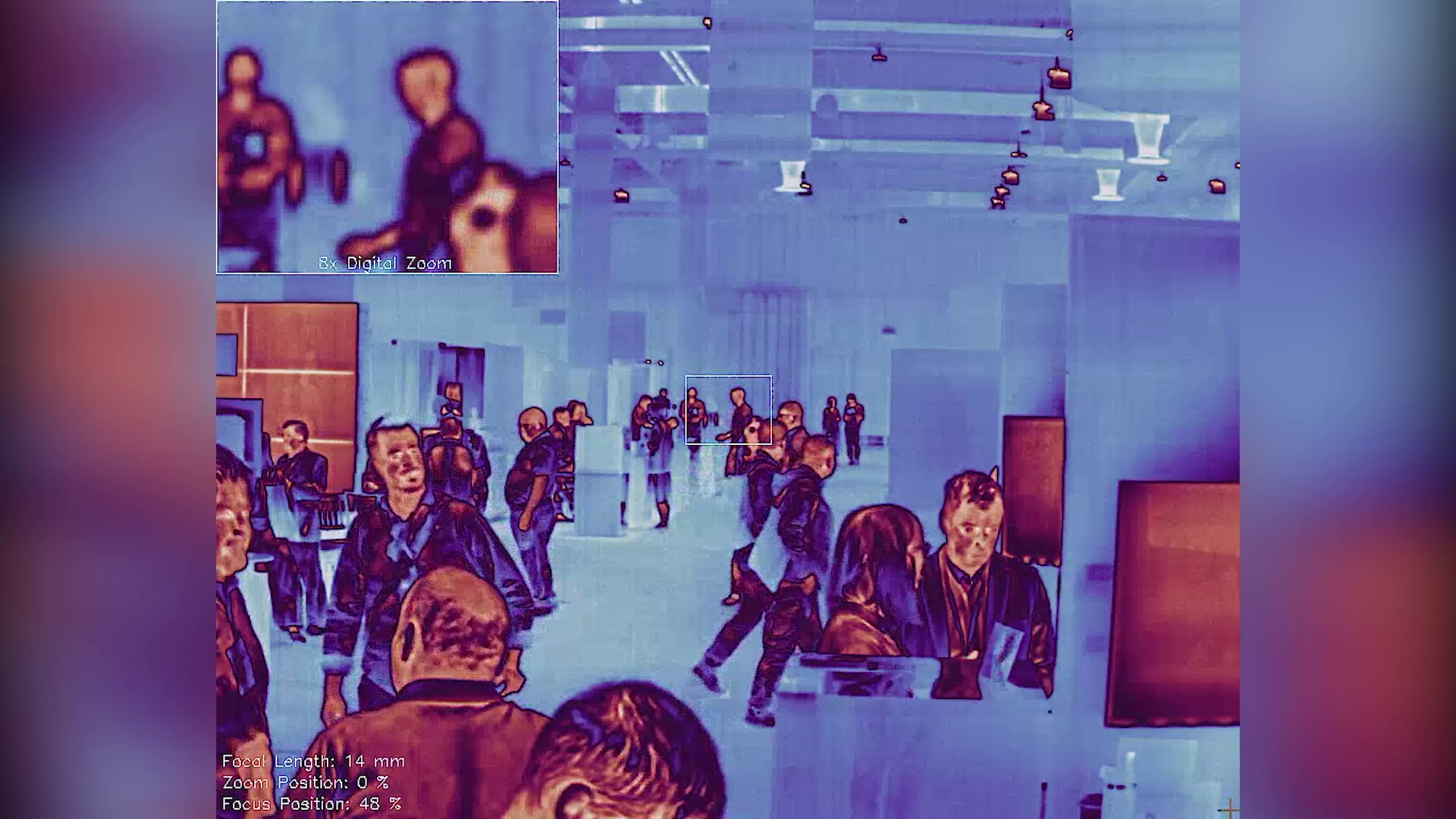

Indoor Crowd (Arctic Color Palette) - Boson+ CZ

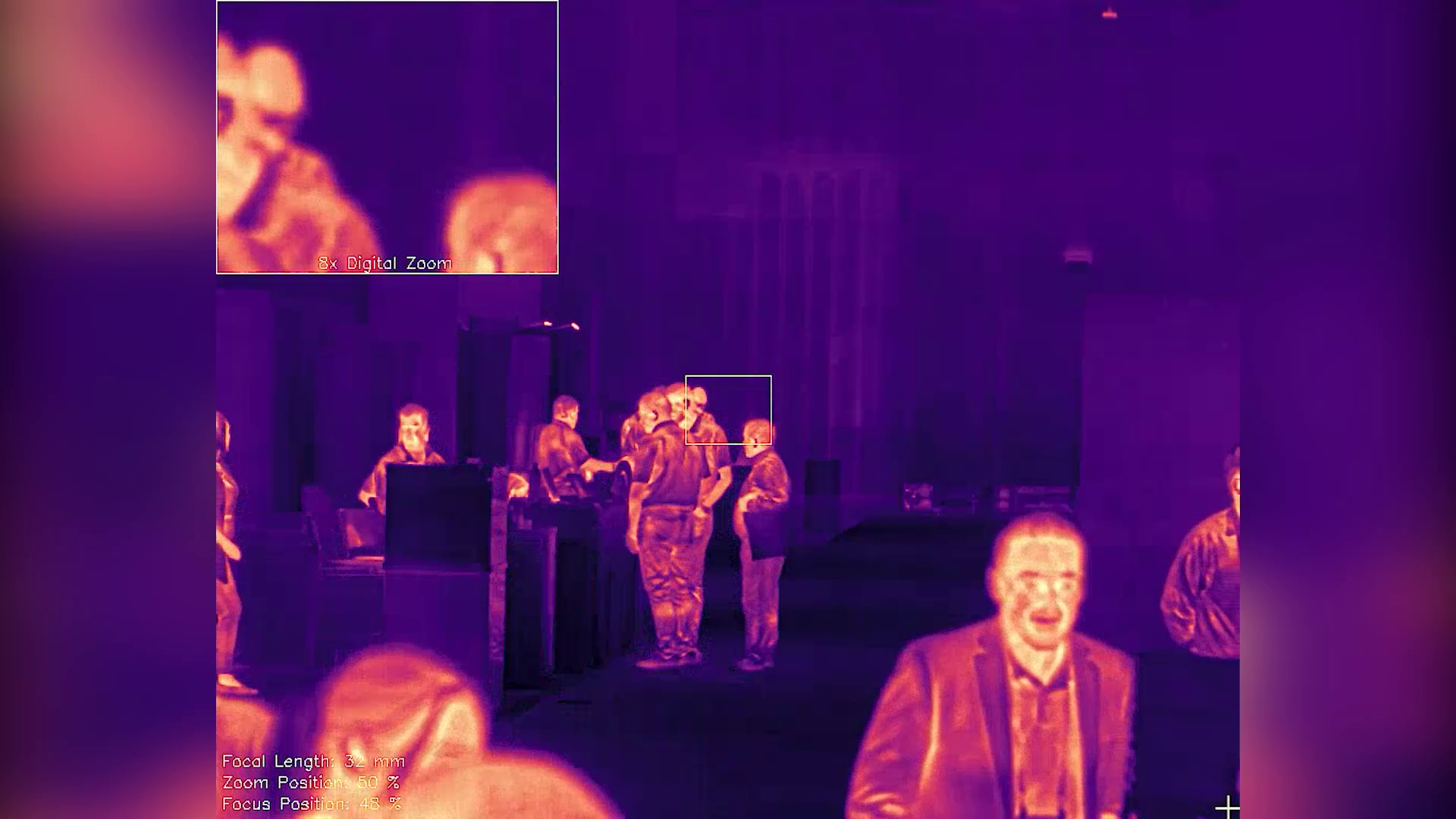

Indoor Crowd (Ironbow Color Palette) - Boson+ CZ

12 Considerations for Thermal IR Camera Lens Selection

When developing a solution that requires a thermal imager, or infrared (IR) camera, engineers, procurement agents, and program managers must consider many factors. Application, waveband, minimum resolution, pixel size, protective housing, and ability to scale production are just a few. One element that will impact many of these decisions is the IR camera lens.

Learn more

Reduce Development Time by Two Years

This paper reviews the traditional challenges of MWIR imaging platform design and illustrates how leveraging a single solution provider can reduce time to market, complexity, and affordability while also improving size, weight, and performance (SWaP).

Learn more

Specifications
Thermal Spectral Range
7.5- 14.0 µm
Performance
Thermal Spectral Range
7.5- 14.0 µm
Imaging & Optical
Back Working Distance
1.98mm (camera seats in lens body)
Distortion
WFOV < 5%; NFOV < 1%
f-number
1.2
Focal Length
14 - 75 mm
Focal Plane Dimension
7.68 x 6.14 mm (9.83 mm circular)
Through Zoom Boresight
≤ 0.10 mm
Zoom Time (End to End)
NFOV to WFOV ≤2.5 sec
Connections & Communications
Communication Protocol
RS422, 115200 baud (default), Option: RS232 and programmable baud rate
Transmission
> 86% (8.0 - 12.0 µm with HEAR); spectrally weighted
Electrical
Current Consumption
Standby < 0.2 A (20°C)
Power UP < 0.7 A (20°C)
Typical Move < 0.4 A (20°C)
Mechanical
Control Features
Thermal Gradient Compensation
Object Range Compensation
ID Module
Built-In Test (BIT)
Data Logging Module (optional)
High Speed Communication - SPI (optional)
User Defined Command Aliases
Easily Upgradable and Expandable
Drive Voltage
12 VDC
Focus Time
< 1 sec (infinity to close focus in NFOV)
Focus/Zoom Mechanism
Motorized adjustable
Size [H x W x L]
87.7 x 74.9 mm
Weight
< 326 grams
Environmental & Approvals
Front Optic Sealing
IP67
Operating Temperature
-32°C to +80°C
Shock
30 G
Vibration
Random vibration, from 10 Hz to 500 Hz
