Thermal Imaging System for Electronics Testing


Go to Product Support
product image

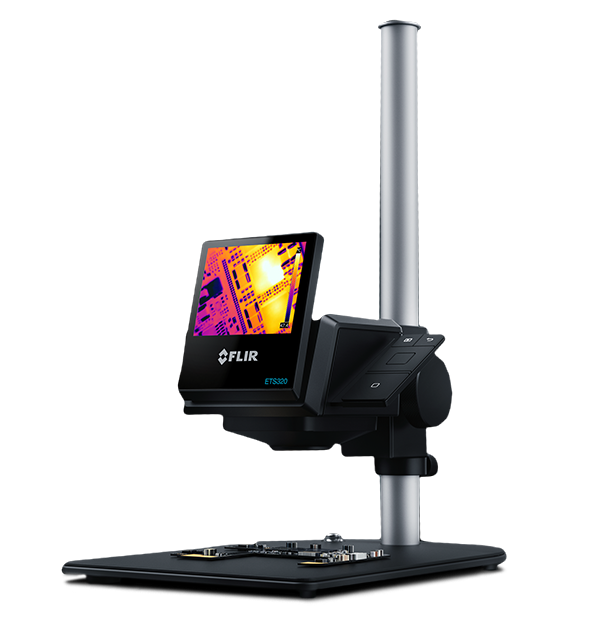

Whether the goal is product testing or scientific research, heat can be an important indicator of how a system is functioning. The FLIR ETS320 is a non-contact thermal measurement system that pairs a high-sensitivity infrared camera with an integrated stand, for hands-free measurement of printed circuit boards and other small electronics.

Sales Contact Contact Sales

One Step To Finding Hot Spots

  • Reduce Test Times

    This sensitive camera detects minute temperature shifts (< 0.06°C) and quantifies heat generation up to 250°C.

  • Improve Product Design

    Offers 76,800 points of non-contact measurement and accuracy of ±3°C, so researchers can locate hot spots without concerns about heat sinks.

  • Designed for Benchtop Work

    With a microscope-style stand that's quick to set up and simplified features, ETS320 allow researchers to focus on their work.

See the Heat Instantly

See the Heat Instantly

The ETS320 displays its crisp thermal imagery on a bright LCD display, to provide immediate thermal feedback and instantly guide you to the source of PCB failures.

Contact Sales

Want more information on this product?

Call 011-4560 3555 to speak with a knowledgeable specialist.

IR Resolution
320 x 240 (76,800 pixels)
Spectral Range
7.5 - 13.0 µm
Detector Type
Uncooled microbolometer
Camera f-number
<60 mK
Imaging & Optical
Available Lenses
Camera f-number
Close-up Lenses/Microscopes
Detector Type
Uncooled microbolometer
Field of view (FOV)
45° x 34°
Fixed Focus Distance
70 mm ± 10 mm
Image Frequency
9 Hz
IR Resolution
320 x 240 (76,800 pixels)
<60 mK
Non-radiometric IR video streaming
Uncompressed colorized video using USB
Radiometric IR video streaming
Full dynamic to PC (FLIR Tools/Tools+) using USB
Spectral Range
7.5 - 13.0 µm
Spot Size Min. Focus
170 µm
Measurement & Analysis
±3°C or ±3% of reading for ambient temperature 10°C to 35°C (50°F to 95°F)
Box with max/min
Camera size (L x W x H)
22 x 15 x 30 cm (8.7 x 5.9 x 11.8 in)
Camera weight incl battery
0.575 kg (1.27 lbs)
Emissivity Correction
Variable from 0.1 to 1.0
Reflected apparent temperature correction
Automatic, based on input of reflected temperature
Spot Meter
Center spot
Communication & Data Storage
Image File Format
Standard radiometric JPEG, 14-bit measurement data included
USB Micro: data transfer to and from PC and Mac devices
List of Contents
Camera, mount, stand, power supply, USB cable, FLIR Tools+ software
Packaging Size
2.9 kg (6.4 lb.)
User Interface
3 in, 320 x 240 pixel color LCD
Battery operating time
Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery type
Li-ion battery, charged in camera
Charging Time
2.5 hrs to 90% capacity
Environmental & Certifications
Directives and Regulations
Battery Directive 2006/66/EC, EMI/EMC Directive 2014/30/EU, WEEE Directive 2012/19/EC, RoHS2 Directive 2011/65/EC, FCC 47 CFR Part 15 Class B, REACH Regulation EC 1907/2006
Emissivity Table
Table of pre-defined materials
Encapsulation & Shock & Vibration
IP 40 (IEC 60529)
Operating Temperature Range
10°C to 40°C (50°F to 104°F)
Storage Temperature Range
-40°C to 70°C (-40°F to 158°F)
Media gallery
Introducing the FLIR ETS320 Benchtop Thermal Imaging Camera
Thermal Imaging for Benchtop Electronics Design - Meet the FLIR ETS320
Unboxing the all new FLIR ETS320 Benchtop Thermal Imaging Camera
