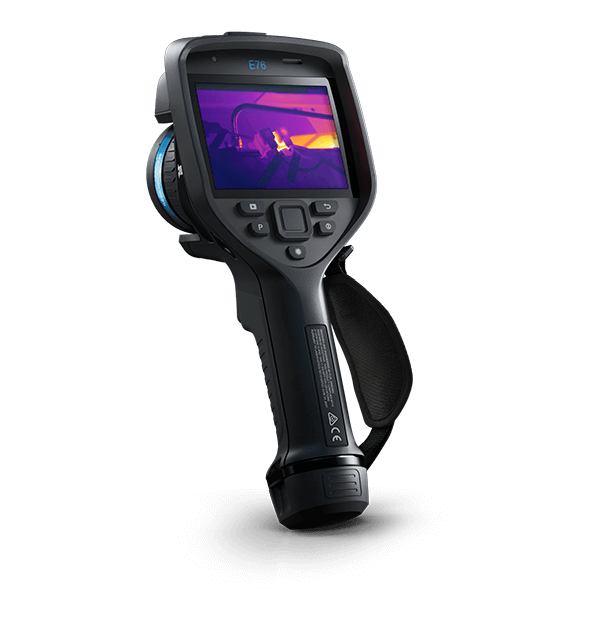

The FLIR E76 offers complete coverage of near and distant targets through a range of lens options. A step up from the FLIR E54, the E76 includes laser-assisted autofocus and 3 area measurement boxes. The 320× 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E76 images directly from the camera to the cloud for easy, secure storage and sharing.
- Products
- Test & Measurement
- Thermography Cameras
- FLIR E76
Added to cart
Inspect and Troubleshoot Faster than Ever
-
Interchangeable, Auto-calibrating Lenses

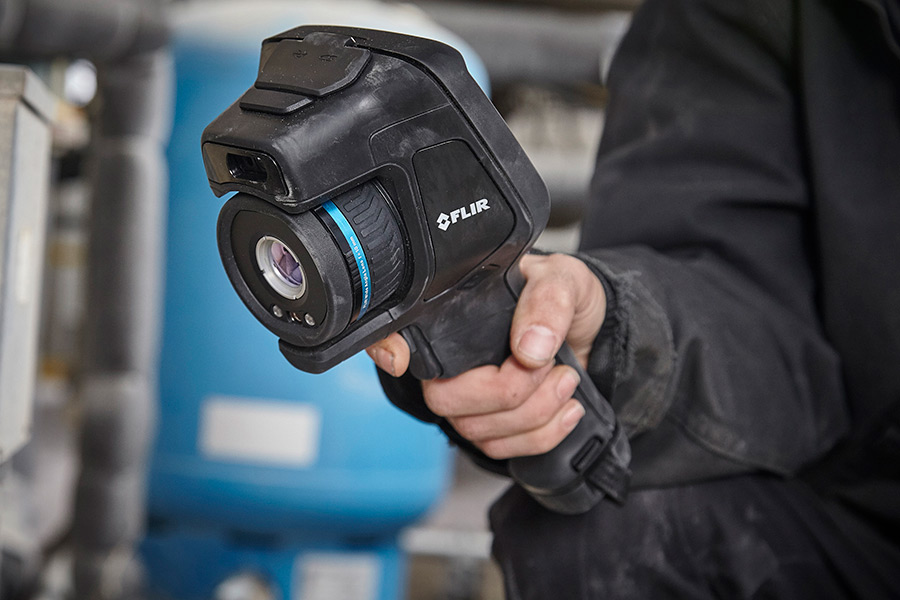

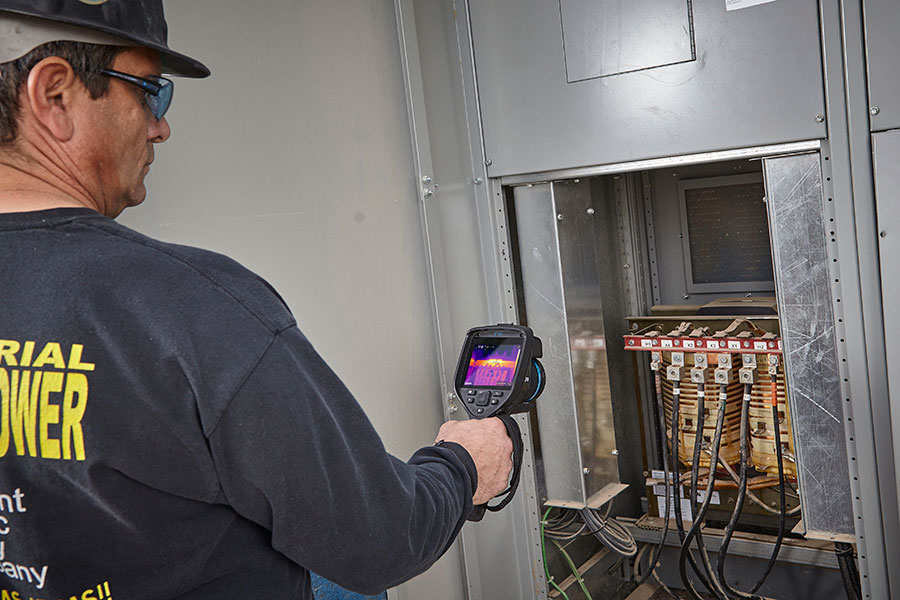

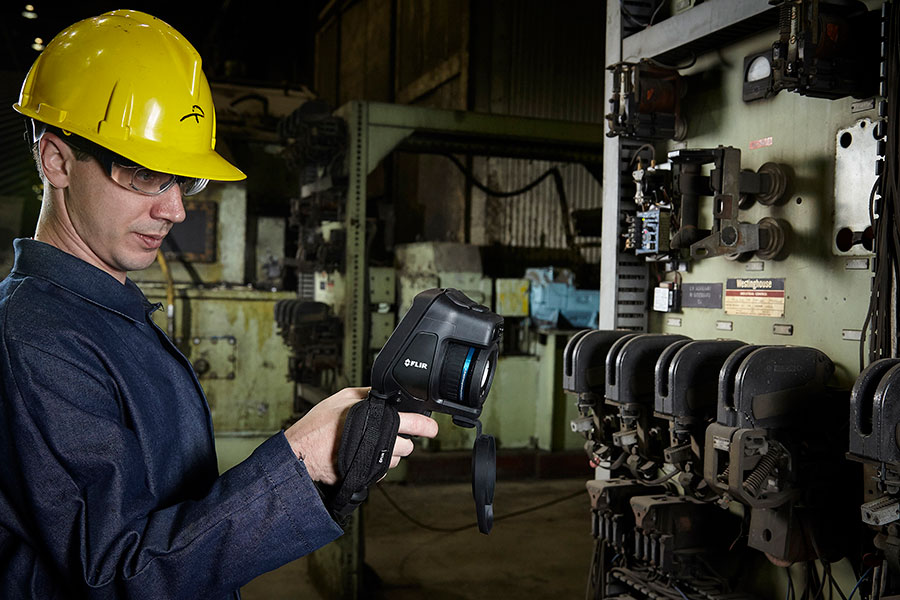

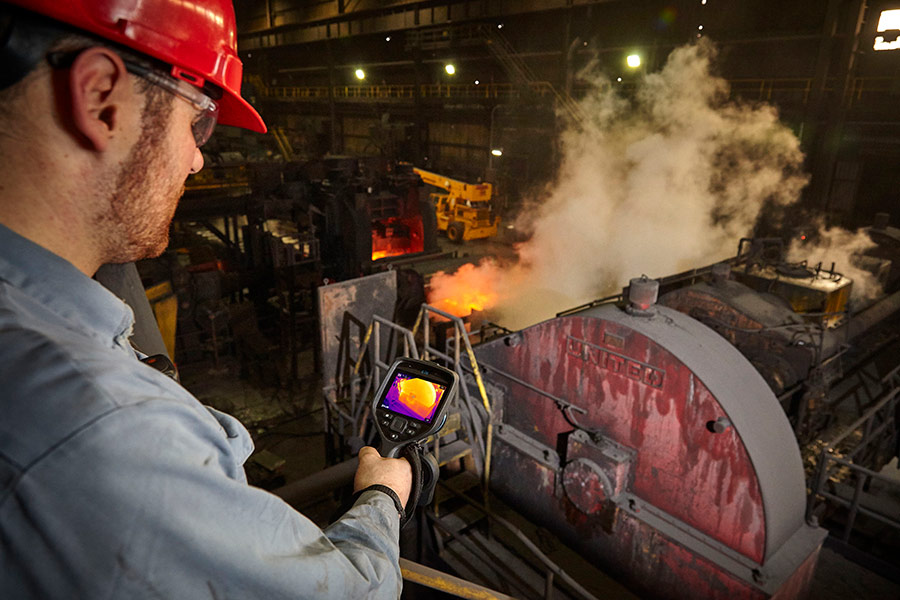

Telephoto, standard, and wide angle AutoCal™ lenses help users survey large targets quickly, check machines for signs of failure, or inspect electrical systems safely.
-
Improved Contrast for Faster Diagnosis
Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
-
Streamlined Reporting
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E76 streamline your workday. (*Optional accessory software)
Don't Have Ignite?
FLIR Exx-Series cameras purchased prior to December 2021 may not include the FLIR Ignite cloud connection. You can add it to your camera for free with a firmware upgrade available here.
Professional Reports that Help Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.
The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.
Never Worry About Your Camera Performance Again
Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.
Become a Thermal Studio Expert
Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:
- How to adjust image parameters and optimize thermal contrast
- How to create batch functions for image processing
- How to design a new report template
Contact Sales
Want more information on this product?
Call 011-4560 3555 to speak with a knowledgeable specialist.
Specifications
- IR Resolution
- 320 × 240 pixels
- Thermal Sensitivity/NETD
- <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
- Accuracy
- ±2°C (±3.6°F) or ±2% of the reading
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Display
- 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media
- Removable SD card
Imaging & Optical
- Color Palettes
- Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector Type and Pitch
- Uncooled microbolometer, 17 µm
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Digital Zoom
- 1-4x continuous
- Field of View
- 24° × 18°, 14° × 10°
- f-number
- 24°: 1.5
14°: 1.5
- Focal Length
- 24°: 17 mm (0.67 in)
14°: 29 mm (1.41 in)
- Focus
- Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Image Frequency
- 30 Hz
- IR Resolution
- 320 × 240 pixels
- Lens Identification
- Automatic
- Minimum Focus Distance
- 24°: 0.18 m (0.59 ft), 14°: 1.0 m (3.28 ft)
- Minimum Focus Distance with MSX
- 24°: 0.5 m (1.64 ft)
14°: 1.0 m (3.28 ft)
- Non-radiometric IR video streaming
- H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture
- Resizable and movable
- Radiometric IR video recording
- Real-time radiometric recording (.csq)
- Radiometric IR video streaming
- Yes, over UVC
- Spatial resolution (IFOV)
- 24°: 1.33 mrad/pixel
14°: 0.75 mrad/pixel
- Spectral Range
- 7.5-14 µm
- Thermal Sensitivity/NETD
- <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
- UltraMax
- Yes
- Viewfinder
- No
Measurement & Analysis
- Accuracy
- ±2°C (±3.6°F) or ±2% of the reading
- Measurement Presets
- No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
- Object Temperature Range
- -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F). 300 to 1000°C (572 to 1832°F) range available with purchase of T199559 High Temperature Option
- Spot Meter
- 3 ea. in live mode
User Interface
- Display
- 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Text
- Predefined list or touchscreen keyboard
- Voice
- 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Power
- Battery operating time
- >2.5 hours at 25°C (68°F) and typical use
- Battery type
- Rechargeable Li-ion battery
Environmental & Certifications
- Operating Temperature Range
- -15 to 50°C (5 to 122°F)
- Safety
- EN/UL/CSA/PSE 60950-1
- Storage Temperature Range
- -40 to 70°C (-40 to 158°F)
General
- FLIR Inspection Route
- Enabled in camera
- Laser Pointer
- Yes
- Packaging
- Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter
