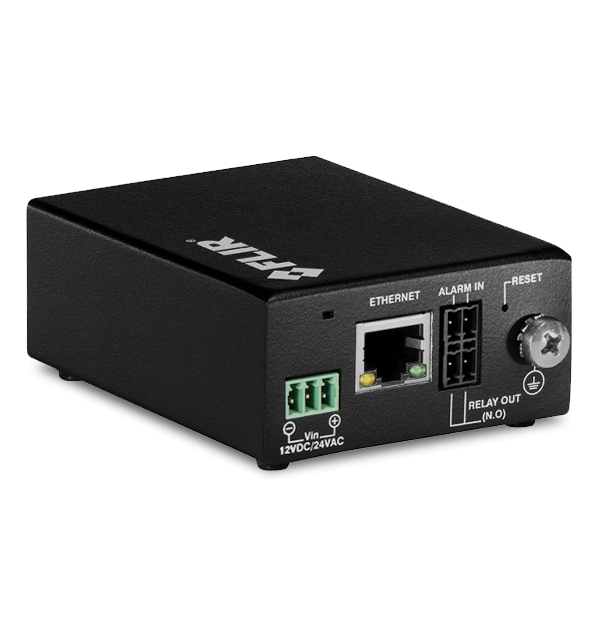

TRK-101
Support Center

TRK-101

Go to Product Details Page

For Support
Please call +000 800 100 8935

For Service
Call +000 800 100 8935 or Submit RMA

Overview:
Warranty & RMA

FLIR Security Product Warranties

Learn more
Online Tools

FLIR Online Design Tool

Read the Story
Resources:
A&E Spec: FLIR TRK-101 A&E Specs
Download
A&E Spec: FLIR TRK-101 CSI-2010 Specification
Download
A&E Spec: FLIR TRK-101-P A&E Specs
Download
Selection Guide: FLIR Security Product Matrix
Download
Software/Firmware Release Note: ioi SD 2.3.0.2 Release Notes
Download
User Manual: FLIR ioi HTML Edition Units User Guide
Download
Datasheet: FLIR ioi TRK-101 Datasheet
Download
Tech Note: FLIR Security Supported 3rd Party Platforms V1.23
Download
User Manual: FLIR-TRK-101-Installation-Manual-EN
Download
Firmware Download: ioi SD H.264 (v.2.3.0.2, 28-Nov-2017)
Download
Software Download: DNA 2.3.0.12
Download
Specifications
Overview
Mounting
Shelf/optional rack-mounting (single-unit or multiple-unit accessory)
Number of Intelligent Video Analysis Channels
1
Storage on the Edge
3,800Mb event recording
H.264 Frame Rate (PAL/NTSC)
D1 12/15 FPS VGA 18 FPS 2CIF 25/30 FPS CIF 25/30 FPS
Alarm
Alarms/Commands
TCP/IP, HTTP
Connections & Communications
Browsers
Internet Explorer 10 and 11
Ethernet (IEEE 8023-8023u)
1 x RJ45 interface
IN - Alarm Input
1x dry contact
OUT/Relay Output
1x relay output (rated load 0.3A@12VDC; 1A@30VDC; 0.25A@24VAC, 50/60Hz)
Physical Connector
1x BNC 75Ω
Services and Protocols
TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP
TV Standard
Composite 1Vp-p – NTSC or PAL
Environmental
Electromagnetic Interference
(EMC) FCC 47 CFR Part 15, Subpart B, Class A; CE Class A
Environmental
RoHS
Operating Humidity
5% to 95% (non-condensing)
Operating Temperature
0° to 60°C (32° to 140°F)
Safety
UL, CE
Imaging & Optical
Video Streaming
RTP/RTSP
Included Software
Operating System
Windows 7, 8 and 8.1, 10
Physical
Dimensions (inches)
2.7 x 1.42 x 4.61" (W x H x D)
Dimensions (mm)
68.5 x 36 x 118mm (W x H x D)
Power
Power Consumption
DC: 3.6W, AC: 6W
Voltage
12VDC (+/-10%), 24VAC
Video & Recording
Bit Rate
CBR (128Kbps – 4Mbps), VBR
IP Video Streaming
H.264, MPEG-4 SP, MJPEG
