MSX® Thermal Camera

FLIR TG165-X

Go to Product Support

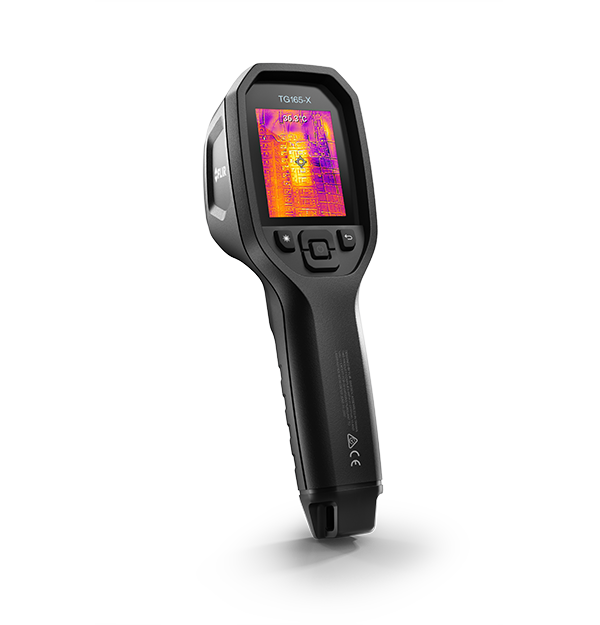

product image

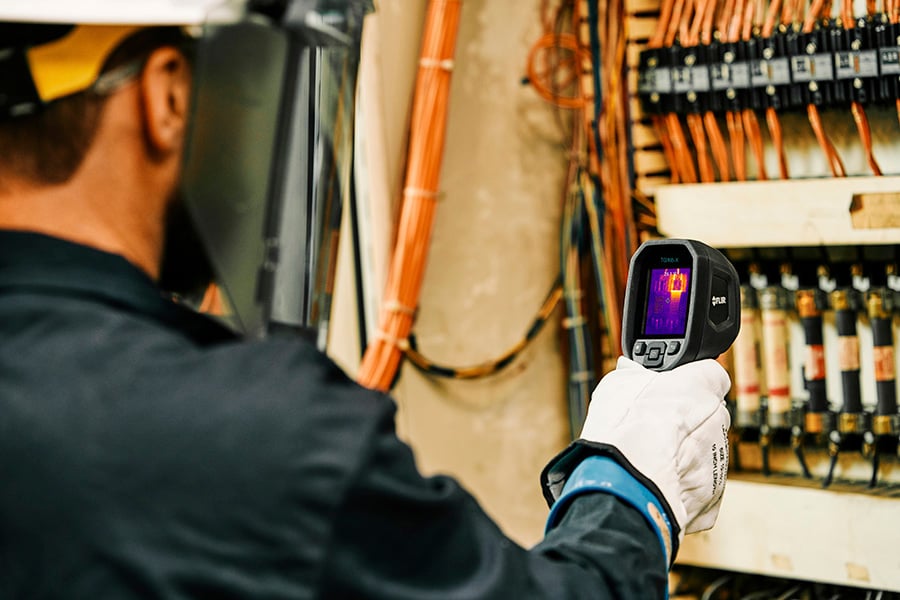

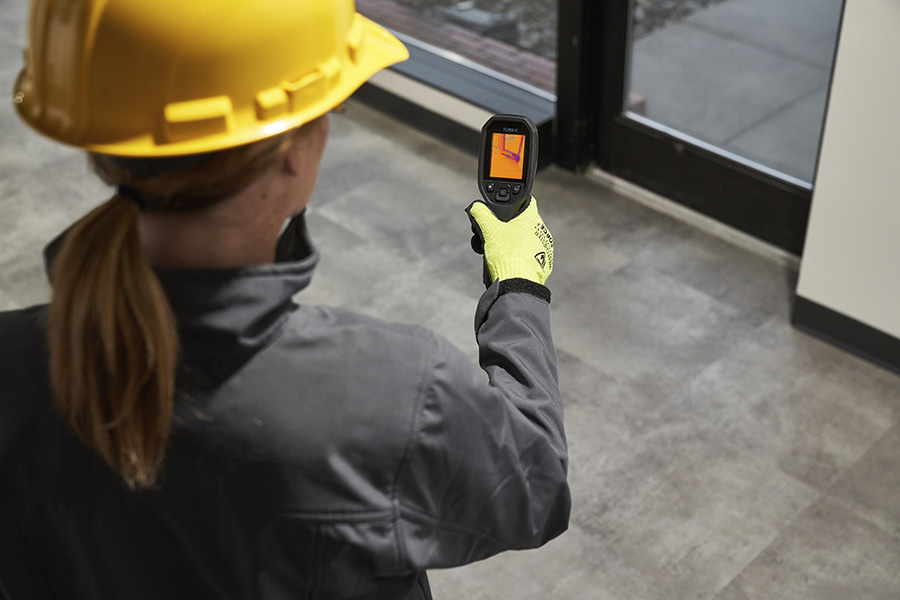

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.

Contact Sales

Dramatically reduces inspection and diagnostic time

  • Pinpoint the source of system failures

    Speed inspections with a thermal view that tells you instantly whether a target is overheating and provides measurements up to 300°C (572°F)

  • Complete inspections quickly and easily

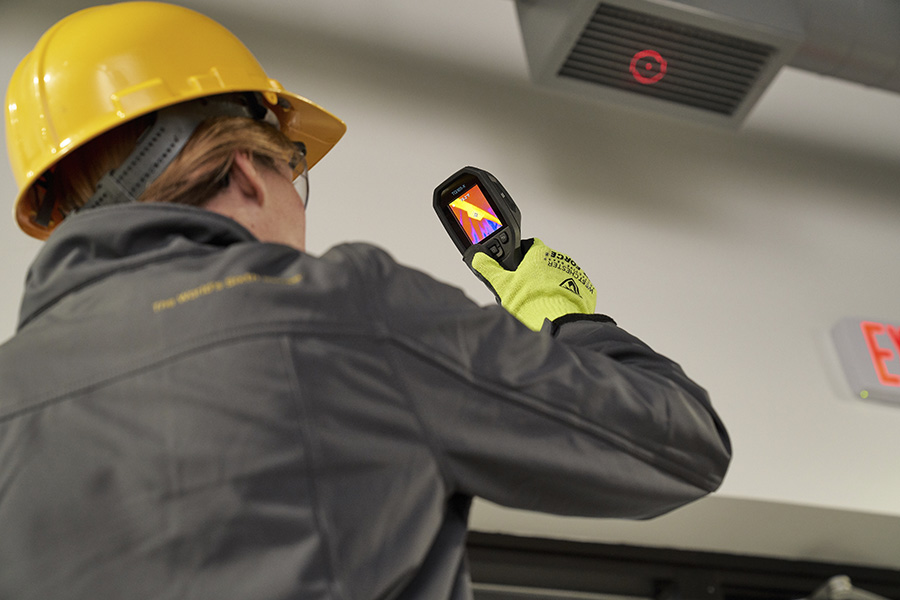

    Target the area that you’re measuring using the bullseye laser pointer and capture thermal MSX and visual images with a simple trigger-pull

  • Work with confidence

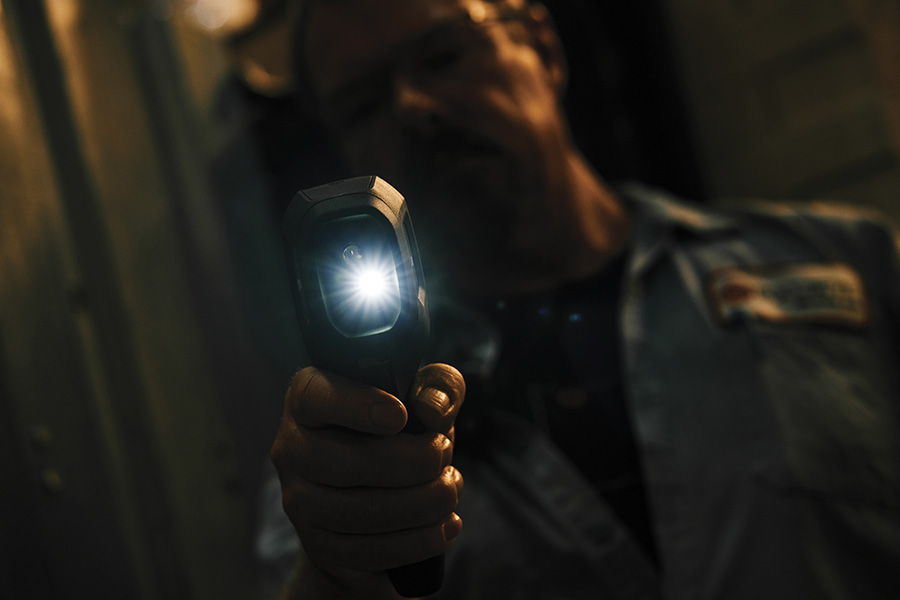

    Easily view live images on 2.4-in. display and see into dark or hard-to-reach areas with the bright LED worklight

Contact Sales

Want more information on this product?

Call 011-4560 3555 to speak with a knowledgeable specialist.

Specifications
General
Color Depth
24-bit
Response Time
150 ms
Viewing Angle
80°
Communication & Data Storage
Image File Format
JPEG with spot temp in meta tag
Image Storage Capacity
50.000 images
Interface
USB 2.0
Storage Media
eMMC 4 GB
USB
USB Type-C: data transfer/power
USB - Standard
USB Type-C High Speed; data transfer/power
Environmental
Environmental Safety
REACH Regulation EC 1907/2006; RoHS2 Directive 2011/65/EC; WEEE Directive 2012/19/EC; JIS C 6802:2011 laser directive (ongoing); IEC 60825-1 class I laser directive; FDA laser
Humidity Requirement
IEC 60068-2-30 / 24h 95% Relative Humidity 25°C to 70°C / 2 Cycles (Storage); IEC 60068-2-30 / 24h 95% Relative Humidity 25°C to 40°C / 2 Cycles (Operating)
Environmental & Certifications
Drop
Designed for 2 m (6.56 ft)
EMC
EN 61000-6-3/EN 61000-6-2/FCC 47 CFR Part 15 Class B
Encapsulation
IP54 (IEC60529)
Humidity (Operating and Storage)
0–90% relative humidity (RH) (0°C to 37°C (32°F to 98.6°F)); 0–65% RH (37°C to 45°C (98.6°F to 113°F)); 0–45% RH (45°C to 55°C (113°F to 131°F ))
Magnetic fields
EN 61000-4-8 class 3
Operating Temperature Range
-10°C to 45°C (14°F to 113°F)
Radio Spectrum
ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2/EN 301 489-1:2011/EN 301 489-17:2009
Safety
CE/CB/EN61010/UL
Shock
25 g (IEC 60068-2-27)
Storage Temperature Range
-30°C to 55°C (-22°F to 131°F)
Tripod Mounting
UNC ¼″-20
Vibration
2 g (IEC 60068-2-6)
General
Flashlight
LED on/off
Laser Pointer
Indicating the size of the measurement area
Light Output
100 lumens
Size [L × W × H]
210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Weight [battery included]
0.394 kg (13.9 oz)
Imaging & Optical
Image Adjustment
Automatic
Visual with Temperature Reading
Yes
Imaging & Optical
Camera software update
Use PC software FLIR Tools
Color Palettes
Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava
Detector Pitch
17 µm
Digital image enhancement
No
Display resolution
320 × 240 pixels
Field of View
71° × 56°, adapts to the IR lens
Field of view (FOV)
51° × 66°
Focal Plane Array (FPA) - Spectral range
Uncooled microbolometer/7.5–14 µm
Focus
Fixed
Gallery
Yes
Image Frequency
8.7 Hz
Image Modes
MSX® (Multi Spectral Dynamic Imaging), visual
IR Resolution
80 × 60 pixels
Laser
Class 1
Minimum Focus Distance
0.3 m (0.98 ft)
Minimum Measurement Distance
0.26 m (0.85 ft.)
Resolution
2 MP (1600 × 1200 pixels)
Thermal Sensitivity/NETD
<70 mK
Measurement & Analysis
IR Temperature Resolution
0.1°C (0.2°F)
IR Thermometer Measurement
Continuous scanning
Repeatability of Reading
±1% of reading or ±1°C (2°F), whichever is greater
Measurement & Analysis
Accuracy
50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)"
Distance to Spot Ratio (D:S)
24:1
Emissivity Correction
Yes: 4 pre-set levels with custom adjustment of 0.1–0.99
Languages
Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
Object Temperature Range
-25°C to 300°C (-13°F to 572°F)
Set-up Commands
Local adaptation of units, language, date, and time formats; Screen brightness (high, medium, low); Gallery, deletion of images
Spot Meter
Center spot on/off
Other
Cover Glass Material
Optical grade silicon
Physical Features
Screen Size
2.4 in, portrait-style
Surface Brightness [cd_m2]
400.0
Power
Battery charge life
30 days minimum
Battery operating time
5 hours of scanning (LCM medium brightness); 4.5 hours with laser on (LCM medium brightness)
Battery type
Rechargeable Li ion battery
Battery voltage
3.7 V
Charging system
Battery is charged inside the camera
Charging Temperature
0°C to 45°C (32°F to 113°F)
Charging Time
4 hours to 90%, 6 hours to 100%
Power Management
Adjustable: off, 5 minutes, 15 minutes, 30 minutes
User Interface
Display Technology
TFT
Visible Camera
Aspect ratio
4:3
