FLIR A500-EST

Model: A500-EST, 24° Lens
Go to Product Support

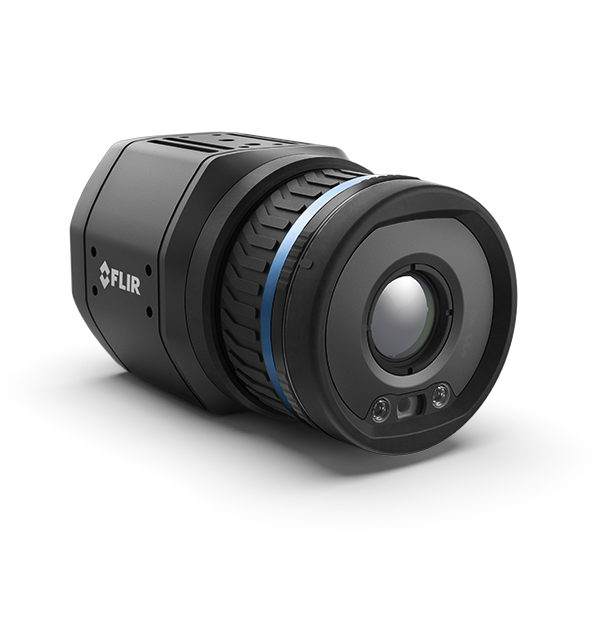

product image

The FLIR A500-EST is a non-contact screening tool that can serve as a first line of defense against potential health risks. This FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. With a 464 × 348 pixel thermal detector and on-camera FLIR Screen-EST™ Mode, the A500-EST can be deployed as a single, standalone screening station or in a network. Compatibility with industry standards such as Modbus TCP, MQTT, RESTful API for data transfer and RTSP for video makes third-party integration easy. The camera can be connected to most Video Management Systems and is compatible with FLIR Screen-EST™ Desktop software.

Contact Sales
  • EASY SET-UP AND OPERATION

    Integrates easily into web services with RESTful API over XML or JSON; offers standard EtherNet and Wi-Fi connectivity.

  • FAST, ACCURATE SCREENING

    Optimal screening accuracy with automatic ambient drift compensation; support for external black body compensation if desired.

  • MAINTAIN SAFETY AND PRIVACY

    On-camera FLIR Screen-EST Mode does not store images or personal information and allows for social distancing in screening setups.

Contact Sales

Want more information on this product?

Call 011-4560 3555 to speak with a knowledgeable specialist.

Specifications
Overview
Alarm Functions
On any selected measurement function, digital in, internal camera temperature
Alarm Output
Digital out, email (SMTP) (push), EtherNet/IP (pull), file transfer (FTP) (push), Modbus TCP master write (push), Modbus TCP slave (pull), MQTT (push), Query over RESTful API (pull), store image or video
Base Mounting
4× M4 on 4 sides
FLIR Screen-EST Mode
Yes
Housing material
Aluminium
Multi-Streaming
Yes
Size (L x W x H)
123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in)
Warranty
http://www.flir.com/warranty/
Web interface
Yes
Weight
0.82 kg (1.8 lb), camera only
Connections & Communications
Digital I/O connector type
M12 12-pin A-coded, Male (shared with external power)
Digital I/O isolation voltage
500 VRMS
Digital input purpose
NUC, NUC disable, alarm, update screening reference sample
Digital Inputs
2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Output Purpose
As a function of alarm, output to external device (e.g. when screening alarm is triggered); fault (NC)
Digital Outputs
3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as fault output (NC)
Ethernet
For control, result, image, and power
Ethernet Communication
TCP/IP socket-based FLIR proprietary
Ethernet Connector Type
M12 8-pin X-coded, female; RP-SMA, female
Ethernet Interface
Wired, Wi-Fi
Ethernet Power
Power over Ethernet, PoE IEEE 802.3af class 3
Ethernet Protocols
EtherNet/IP, IEEE 1588, Modbus TCP Master, Modbus TCP Slave, MQTT, SNMP; TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP
Ethernet Standard
IEEE 802.3
Ethernet Type
1000 Mbps
Multicast
Yes
Unicast
Yes
WiFi
Yes. RP-SMA, female connector
Environmental
Atmospheric transmission correction
Based on inputs of distance, atmospheric temperature, and relative humidity
EMC
ETSI EN 301 489-1 (radio), ETSI EN 301 489-17 (radio), EN 61000-4-8 (magnetic field), FCC 47 CFR Part 15 Class B (emission US), ISO 13766-1 (EMC - Earth-moving and building construction machinery), EN ISO 14982 (EMC - Agricultural and forestry machinery)
Emissivity Correction
Variable from 0.01 to 1.0
Encapsulation
IEC 60529, IP 54, IP66 with accessory
Humidity (Operating and Storage)
IEC 60068-2-30/24 hours, 95% relative humidity, 25°C–40°C (77°F–104°F)/2 cycles
Lens Transmission Correction
Automatic, based on signals from internal sensors
Measurement Frequency
Up to 10 Hz
Operating Temperature Range
-20°C to 50°C (-4°F to 122°F); cooling plate needed for temperatures above 40°C (104°F)
Radio Spectrum
FCC 47 CFR Part 15 Class C (2.4 GHz band US), FCC 47 CFR Part 15 Class E (5 GHz band US), RSS-247 (2.4 GHz and 5 GHz band Canada), ETSI EN 300 328 V2.1.1 (2.4 GHz band EU), ETSI EN 301 893 V2.1.1 (5 GHz band EU)
Schedule Response
sftp (image), SMTP (image and/or measurement data/result)
Shock
IEC 60068-2-27, 25 g
Tripod Mounting
UNC ¼″-20 on 2 sides
Vibration
IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal; IEC 61373 Cat 1 (Railway)
File Storage & Communication
Video Storage
Up to 10 H.264 videos stored as a function of alarm; 5 sec before or after alarm
Imaging & Optical
Camera f-number
1.3
Contrast Enhancement
FSX / Histogram equalization (IR only)
Detector Type and Pitch
Uncooled microbolometer, 17 µm
Field of view (FOV)
24° × 18°
Focal Length
17 mm (0.67 in)
Focus
One-shot contrast, motorized, and manual
Image Frequency
30 Hz
IR Resolution
464 × 348
Lens
24°
Lens Identification
Automatic
Overlay
With / Without
Radiometric IR video streaming
RTSP protocol
Readout
For measurement results: EtherNet/IP (pull); Modbus TCP master (push); Modbus TCP slave (pull); MQTT (push); Query over REST API (pull): measurements and still image (radiometric JPEG, visual 640 × 480, visual 1280 × 960) read access only; web interface
Spatial resolution (IFOV)
0.90 mrad/pixel
Spectral Range
7.5–14 µm
Streaming Resolution
RTSP video streaming (source 0) - 640 × 480 pixels; RTSP video streaming (source 1) - 1280 × 960; radiometric streaming: 640 × 480 pixels
Video Streaming
RTSP protocol
Visible Camera
Included
Measurement & Analysis
Accuracy [Drift] in Screen-EST Mode
±0.3°C (±0.5°F)
Automatic hot & cold detection
Max/min temperature value and position shown within box
External Optics & Windows Correction
Based on input of optics/window transmission and temperature
Measurement Corrections
Global object parameters, local parameters per analyze function, external blackbody correction
Measurement Presets
Yes
Object Temperature Range
15°C to 45°C (59°F to 113°F); camera provides contrast from -20°C to 120°C (-4°F to 248°F) but will not provide temperature information
Reflected apparent temperature correction
Based on input of reflected temperature
Other
Thermal Sensitivity_NETD [typical]
<40 mK @ 30°C (86°F)
Power
External Power Operation
24/48 V DC 8 W max
External Voltage
Allowed range 18–56 V DC
Power Connection
M12 12-pin A-coded, male (shared with Digital I/O)
Power Consumption
7.5 W at 24 V DC typical/7.8 W at 48 V DC typical/8.1 W at 48 V PoE typical
Radiometry
Image Source
Visual / IR / MSX
Shipping Information
Packaging
Infrared camera with lens, Ethernet cable M12 to RJ45F (0.3 m/0.98 ft), printed documentation including login for web interface
Storage Media
Image Storage
Up to 100 FLIR radiometric JPEGs, stored as a function of alarm, scheduling, or user interaction (camera web)
Related Documents

FLIR A500-EST - Model: A500-EST, 24° Lens
