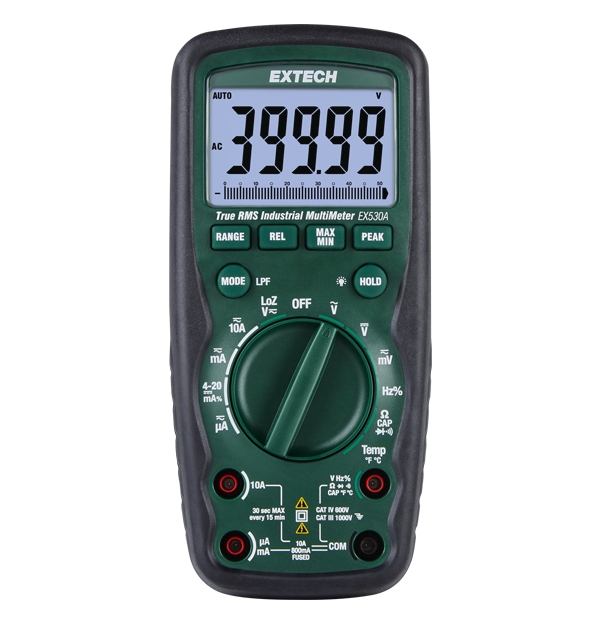

Heavy Duty True RMS Industrial Multimeter

Extech EX530A

Model: EX530A Go to Product Support
product image

The EX530A multimeter is ideal for use in the outdoors, on boats, and in any harsh industrial environment. Waterproof to IP67 standards, it has a double molded housing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA to 20 mA, and duty cycle. Additional features include: ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold and 1000 V input protection for all functions. Comes complete with double-molded test leads, type K thermocouple -45°C to 760°C (-50°F to 1400°F), bead wire temperature probe -20°C to 250°C (-4°F to 482°F), magnetic hanging strap, case, and a 9 V battery.

  • True RMS DMM

    True RMS DMM with 50,000 count large LCD screen, temperature function, and waterproof housing.

  • Feature-packed

    AC/DC voltage & current, resistance, capacitance, frequency, temperature, duty cycle, and diode/continuity.

  • Complete Package

    Complete with double molded test leads, magnetic hanging strap, Type K thermocouple, bead wire temperature probe, carrying case, and 9 V battery.

Specifications
General Specifications
AC Current
0.1 µA to 10 A
AC Voltage
1 mV to 1000 V
Capacitance
0.01 nF to 99.99 mF
Continuity
Yes
DC Current
0.1 µA to 10 A
DC Voltage
0.1 mV to 1000 V
Duty Cycle
0.1 to 99.9%
Frequency
Electrical: 0.001 Hz to 10 MHz, Electronic: 0.01 Hz to 1 kHz
Resistance
0.01 Ω to 50 MΩ
Temperature (Type K) Max Resolution
-45°C to 760°C (-50°F to 1400°F)
True RMS
Yes
Additional Details
Certifications
CE, UL
Dimensions
183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in)
Display
50,000-count segment LCD
IP Rating
IP67
Power
1 × 9 V battery
Safety Category
CAT IV-600 V
Warranty
3 years
Weight
380 g (13.4 oz)
