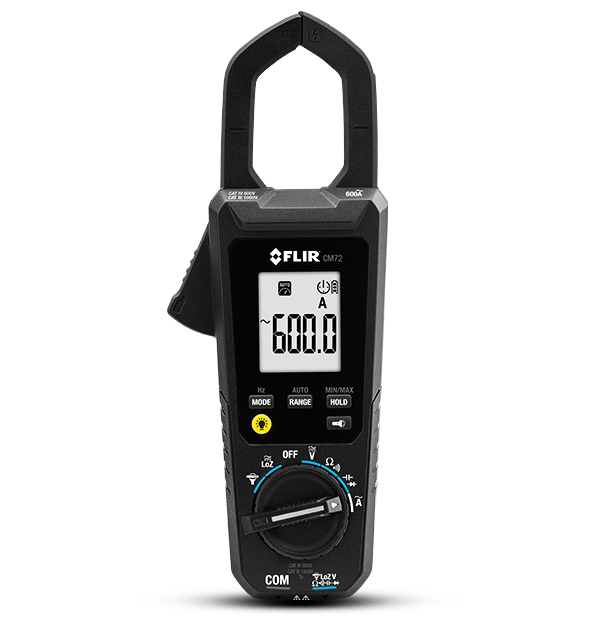

The FLIR CM72 clamp meter gives you better access to wiring in hard-to-reach places. Made with a narrow jaw and high-powered LED worklights, the meter makes it easier to take measurements in dark, crowded panels and cabinets. It’s compact and light to carry in your back pocket wherever you go. The CM72 features AC measurement, Autoranging, True RMS, and more, to help you stay competitive and ensure accurate readings.
- Products
- Industrial
- Test & Measurement
- Clamp Meters
- FLIR CM72
Added to cart
-
Lightweight and Narrow Clamp Jaw
The light and compact meter is convenient to carry and designed to easily access wiring in crowded panels or cabinets.
-
All the Features You Need
Tackle modern challenges and get accurate readings with advanced electrical features including True RMS, LoZ, and Smart Diode with Disable.
-
Built to Last
Built rugged with double-molded hand grips to reduce slippage, a large-digit LCD display, and a bright backlight.
Contact Sales
Want more information on this product?
Call 011-4560 3555 to speak with a knowledgeable specialist.
Specifications
- Jaw Opening
- 1.38" (35mm), 1250MCM
- AC Current
- 600.0A / Basic Accuracy ±2.0%
Measurement & Analysis
- AC Current
- 600.0A / Basic Accuracy ±2.0%
- AC Voltage
- 600.0V / Basic Accuracy ±1.0%
- Capacitance
- 1000µF / Basic Accuracy ±1.0%
- Category Rating
- CAT IV-600V, CAT III-1000V
- Continuity
- 600.0Ω / Basic Accuracy ±1.0%
- DC Current
- - / Basic Accuracy ±2.0%
- DC Voltage
- 600.0V / Basic Accuracy ±1.0%
- Diode
- 1.5V / Basic Accuracy ±1.5%
- Frequency
- 60.00kHz / Basic Accuracy ±0.1%
- Inrush AC Current
- - / Basic Accuracy ±3.0%
- Inrush Current Threshold
- - / Basic Accuracy
- LoZ Mode AC Voltage
- 600.0V / Basic Accuracy ±1.0%
- LoZ Mode DC Voltage
- 600.0V / Basic Accuracy ±1.0%
- Resistance
- 6000Ω / Basic Accuracy ±1.0%
- VFD AC Current
- 600.0A / Basic Accuracy ±2.0%
- VFD AC Voltage
- - / Basic Accuracy ±1.0%
Power
- Battery type
- 4 x AAA
General
- Includes
- Clamp Meter, 4 x AAA Batteries, Premium Silicone Test Leads, Quick Start, User Manual (CD), Extended Warranty Registration Card
- Jaw Opening
- 1.38" (35mm), 1250MCM
Environmental & Certifications
- Certifications
- UL
- Warranty
- Limited Lifetime
Related Documents
Reviews
Export Restrictions
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
