• Take Measurement in Tight Spaces

    Snake the flexible coil clamp around obstacles with ease, even in deep, crowded cabinets.

  • Easy Inspection and Navigation

    Made with bright, dual-LED worklights to illuminate dark cabinets, built to withstand a 3-meter drop, portable, lightweight, and tangle-firee, the CM55 and CM57 were designed with your convenience in mind without compromising measurement range. Made with bright, dual-LED worklights to illuminate dark cabinets, built to withstand a 3-meter drop, portable, lightweight, and tangle-firee, the CM55 and CM57 were designed with your convenience in mind without compromising measurement range.

  • Safe, Remote Viewing

    Transfer data to iOS and Android devices with FLIR Tools. Multiple units wirelessly connect for remote viewing of multiphase systems.

Contact Sales

Want more information on this product?

Call 011-4560 3555 to speak with a knowledgeable specialist.

Specifications
Overview
Data Record Mode
20,000 points , 1 min sample rate
Display
3000 count LCD with backlight and multi‐function indicators
Worklights
Two white LEDs
Compliance & Certifications
Agency Approvals
FCC Class B, CE, UL
Warranty
Limited lifetime with registration
Connections & Communications
Bluetooth range max
32' (10m)
Wireless ID# max
Up to 20
Environmental
Drop test
9.8' (3m)
Safety Rating
CAT IV 600V, CAT III 1000V
Standards
EN61010-1, EN61010-2-032, EN61326-1
General
Power Supply
(2) 1.5V "AAA"
Measurement & Analysis
AC Current Bandwidth
45Hz – 500Hz (sine wave)
AC Current Ranges and Resolution
30.00A, 300.0A, 3000A
Basic AC current accuracy (of reading)
± 3.0% + 5 digits
Inrush Current
Min 0.5A, 100mS
Maximum AC current
3000A
Positional Error [distance from optimum]
1.4" (35mm) ± 1.0% / 2.0" (50mm) ± 1.5% / 2.4" (60mm) ± 2.0%
Measurement & Analysis
Maximum resolution
0.01A
Meter Data
Flex Coil Diameter
0.3" (7.5mm)
Flex Coil Length
18" (45cm)
Flex Coil Tip Diameter
0.5" (13mm)
Max Conductor Diameter
4.7" (12cm)
Power
AC Response
True RMS
Related Content
Related Documents
Reviews
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.

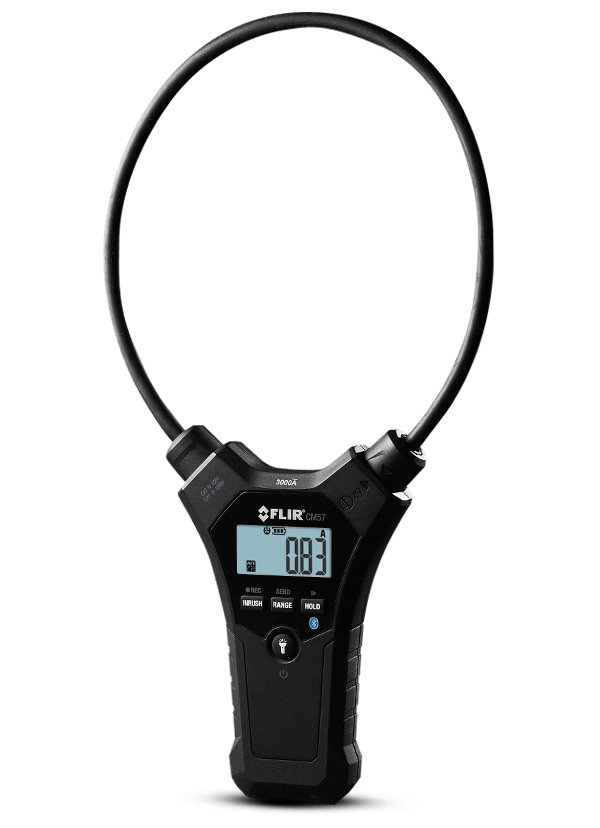

FLIR CM57
