See more with your clamp meter

  • Troubleshoot Faster, More Safely

    Quickly identify issues with IGM, without contact with panels, cabinets, or cluttered wires and cables that may present safety hazards.

  • Verify Problems, Validate Hot Spots

    Get accurate amperage and voltage measurements and center-point temperature readings. Also features a large display for data and image viewing.

  • Document and Share Results Instantly

    Upload and organize electrical measurements and thermal images, share information with your team, and file reports while in the field.

Contact Sales

Want more information on this product?

Call 011-4560 3555 to speak with a knowledgeable specialist.

Specifications
Overview
Worklights
Yes
System Overview
Color Palettes
Iron, Rainbow, Grayscale
Size (L x W x H)
43 x 89 x 241 mm (1.7 x 3.5 x 9.5 in)
Compliance & Certifications
Warranty
10 year
Environmental
Drop test
2 m
Emissivity Settings
4 Presets with Custom Adjustment
Imaging & Optical
Display Size
2.4 in TFT screen
Field of View [V x H]
44° × 57°
Gallery
8549
Thermal Imaging Detector
FLIR Lepton® microbolometer
Measurement & Analysis
AC Current
Range 600.0A / Basic Accuracy ±2.0%
AC/DC Voltage
Range 1000V / Basic Accuracy ±1.0%
Capacitance
Range 1000µF / Basic Accuracy ±1.0%
Continuity check threshold
30Ω to 150Ω
Diode
Range 1.5V / Basic Accuracy ±1.5%
Inrush AC Current
Range 600.0A / Basic Accuracy ±3.0%
LoZ Mode AC Voltage
Range: 60.00 V, 600.0 V, 1000 V Basic Accuracy: ±1.0%
LoZ Mode DC Voltage
Range: 60.00 V, 600.0 V, 1000 V Basic Accuracy: ±1.0%
Resistance
Range 6000Ω / Basic Accuracy ±1.0%
Temperature Accuracy
± 3°C (5.4°F) or ±3% of rdg
Temperature Range
14°F to 302°F (-10°C to 150°C)
True RMS
Yes
VFD AC Current
Range 600.0A / Basic Accuracy ±2.0%
VFD AC Voltage
Range 1000V / Basic Accuracy ±1.0%
Meter Data
Auto Power Off
Yes
Auto Range
Yes, with manual range option
Other
Flex Input AC A
Range: 3000 A Basic Accuracy: ±1.0%
Flex Input Frequency Counter
Range: 10.00 kHz Basic Accuracy: ±0.1%
Performance
Measuring Rate
3 samples per second
Physical Features
Weight
426 g (15 oz)
Power
Battery
3 AA batteries; optional TA04 Li-Poly rechargeable battery
Sampling & Analysis
Sensitivity
150 mK
Storage Media
Data Logging & Storage
10 sets of 40K scalar measurements, 100 images
System Integration
Connectivity
Bluetooth®
Thermal Imaging
Focus
Fixed
Visible Camera
IR Resolution
160 × 120 (19,200 pixels)
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.

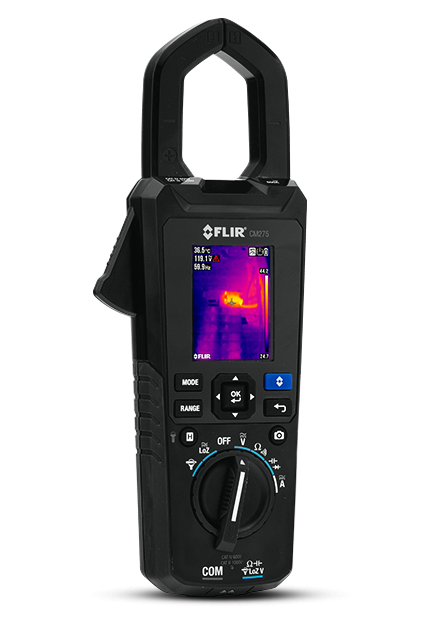

FLIR CM275
